EVCOME Ev Wall Box Charging Station (220V 7KW 32A) With RFID Type 1 Type 2 GBT CE SAA UKCA ROHS
Contact Person : Claire
Phone Number : +8617321236228
Whatsapp : +8617321236228
| Minimum Order Quantity : | 20 | Price : | negotiation |
|---|---|---|---|
| Delivery Time : | 8-10days | Payment Terms : | L/C,D/A,D/P,T/T |
| Supply Ability : | 500000 PIECE PER MONTH |
| Place of Origin: | CHINA | Brand Name: | EVCOME |
|---|---|---|---|
| Certification: | CE/TUV/ROHS/FCC | Model Number: | EV-HS-32AC |
|
Detail Information |
|||
| Brand Name: | Evcome | Type: | Portable Ev Charger |
|---|---|---|---|
| Model Number: | EV-HS-32AC | Place Of Origin: | China |
| Rated Voltage: | 250V | Rated Current: | 32A |
| Cable Length: | 5Meters(custom) | Charging Port: | Type2/Type1/GBT |
| Protection Level: | IP65 | Charging Standards: | IEC61851 |
| CERTIFICATION: | CE,ROHS,UKCA | Weight: | 3KG |
| Highlight: | 22kw ac charger,electric vehicle charging wallbox,level 3 ev charger home |
||
Product Description
Products Description
Portable EV chargers are convenient for EV owners who frequently travel or need the flexibility to charge their vehicle in different locations. They offer a portable charging solution that can be easily carried in the trunk of your vehicle, providing peace of mind and extending your EV's range even when you're away from dedicated charging stations.
|
Input & Output
|
||||
|
Input voltage / Output voltage
|
220V
|
Output current
|
8A/10A/13A/16A/32A Ajutable
|
|
|
Max power
|
3.6kw/7kw/11KW
|
Input frequency
|
50Hz
|
|
|
Standby power consumption
|
<3W
|
Charging interface type
|
TYPE 1(SAE J1722), TYPE 2 (IEC 61851),GBT(20234)
|
|
|
Protection
|
||||
|
Over-voltage protection
|
Yes
|
grounding protection
|
Yes | |
|
under-voltage protection
|
Yes |
over-temperature protection
|
Yes | |
|
overload protection
|
Yes |
low-temperature protection
|
Yes | |
|
earth leakage protection
|
Yes |
lightning protection
|
Yes | |
|
Working environment
|
||||
|
Applicable scene
|
Indoor / Outdoor
|
Operating temperature
|
-40℃ ~ +65℃
|
|
|
Height above sea level
|
<2000m
|
Operating humidity
|
5% ~ 95%, non-condensation
|
|
|
Protection level
|
IP65
|
Cooling method
|
Natural cooling
|
|
|
MTBF
|
100,000 hours
|
Special protection
|
UV protection design
|
|
|
Structure Appearance
|
Certificate | |||
|
Equipment dimension
|
195*95*55mm ( L*W*H )
|
CE | UKCA | |
|
Installation method
|
Portable Ev Charger
|
ROHS | ||
|
Wiring method
|
Bottom enter&out |
|||
|
Equipment weight
|
3kg
|
|||
| Length | 5m or customized | |||

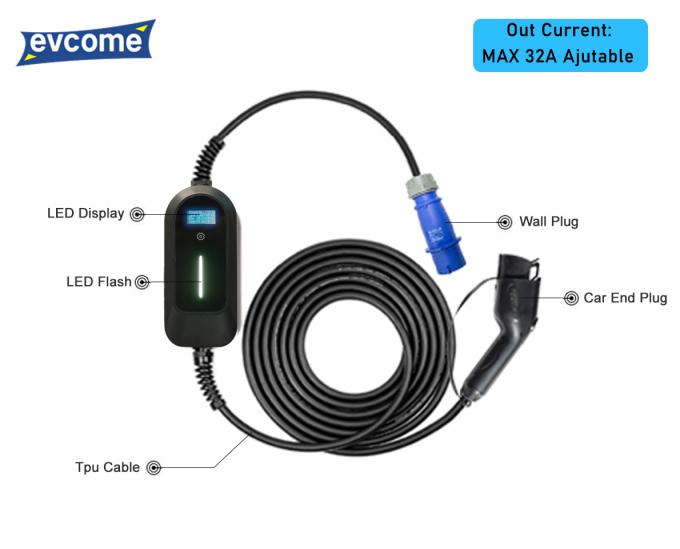

Product selling points
Portable EV chargers incorporate safety features like ground fault circuit interrupters (GFCIs) and protection against overcurrent, overvoltage, and overheating. These features ensure safe and reliable charging.Portable chargers often have a user-friendly interface, including LED indicators or a small display, to provide charging status information and any error notifications.
PRODUCT SELLING POINT EV CONNECTOR TPU CABLE
0.96〃LCD(opt) Display ABS PC injection moulding casing Durable and anticorrosion
Easy Operation Mode Plug & Play Fire standing of UL94V_0 Easy to bend,Long service life
Adjustable current, Automatic power off after charging Meet the harsh working terrain High resistance to cold
Conforms to a variety of implementation standards Excellent electrical conductivity High temperature
and is suitable for many countries

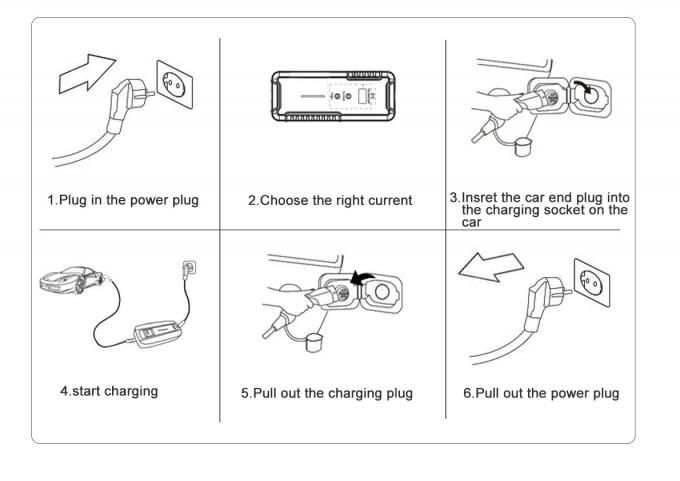

Instructions For Use
Product Description
The Portable EV Charger is simple to use, all you need to do is plug it into the PLUG outlet and then plug the charging gun into the charging port device will start charging your EV's battery. The operating temperature of the product is -40°C - +65°C. The protection class of the charging box is IP65 and the protection class of the charging gun is IP55 (when plugged in). The outer jacket of the charging cable is made of TPU, which is resistant to corrosion, abrasion and low temperature. The cable remains soft and does not become hard when used in cold climates, making it inconvenient to use.
★ Do not use it in an environment that exceeds the operating temperature.
★ Do not put your fingers into the car end plug when the device is connected to the power source.
★ Do not use when the equipment and cables are found to be damaged.
★ Do not use the device for charging other than electric vehicles.
PLEASE PAY ATTENTION TO:Please do not disassemble and assemble the machine without permission,if it causes damage, you will not be able to enjoy after-sales service
Product Characteristic

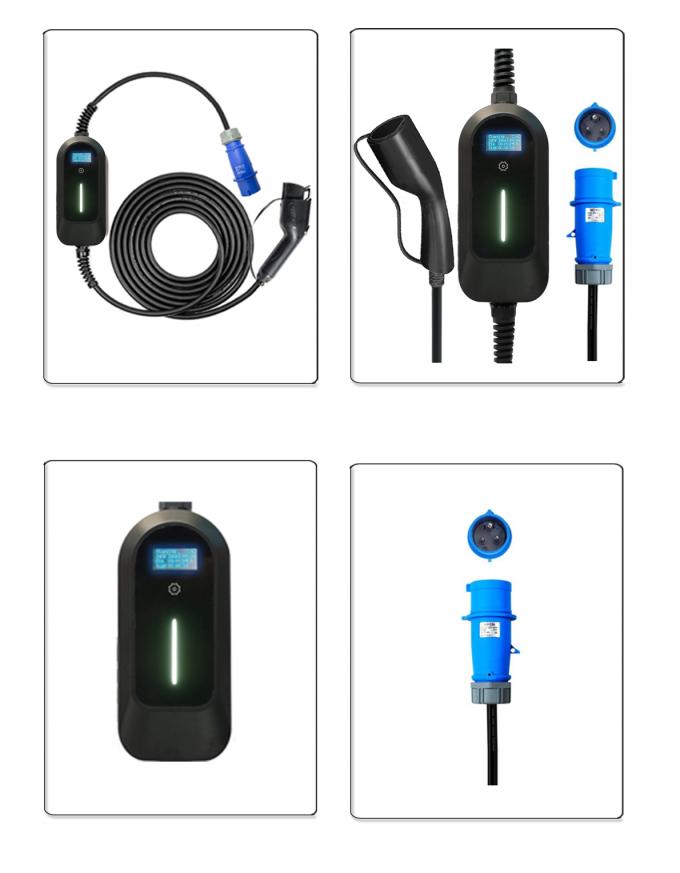

Product Picture
Customized

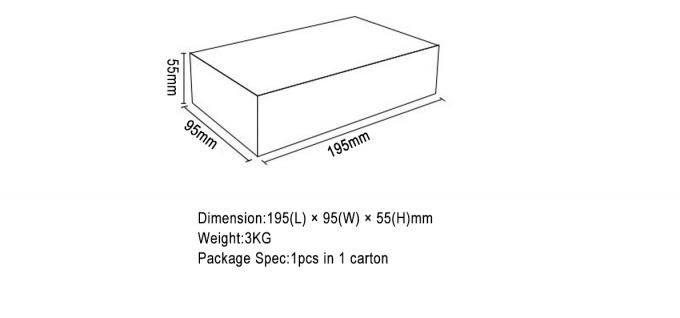

Package Size
Our Service
Customer Service
★ We provide very professional product consultation and introduction to fully match your needs
★ 24-hour customer service team, ready to provide you with consultation and service
★ All customers will get one-on-one service.
Customized Service
★We offer very flexible customization services like OEM/ODM
★OEM includes color, logo, outer packaging, cable length, etc
★ODM includes function setting, new product development, etc.
After Sales Service
★We offer a one-year quality guarantee period for our products
★We have a very professional team to solve all the problems encountered in the process of use, they will be at your service 24 hours
Drop Shipping
★We have our own warehouses overseas, making delivery more convenient and faster
